[ CNN ] 2. Grouped convolution - PyTorch Code

---



Grouped convolution - PyTorch Code



---



Grouped Convolution

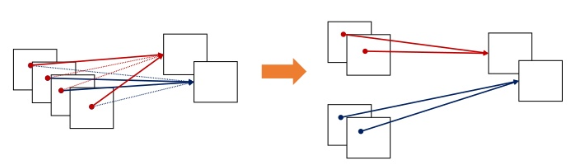

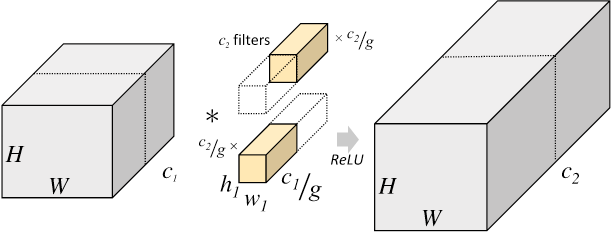

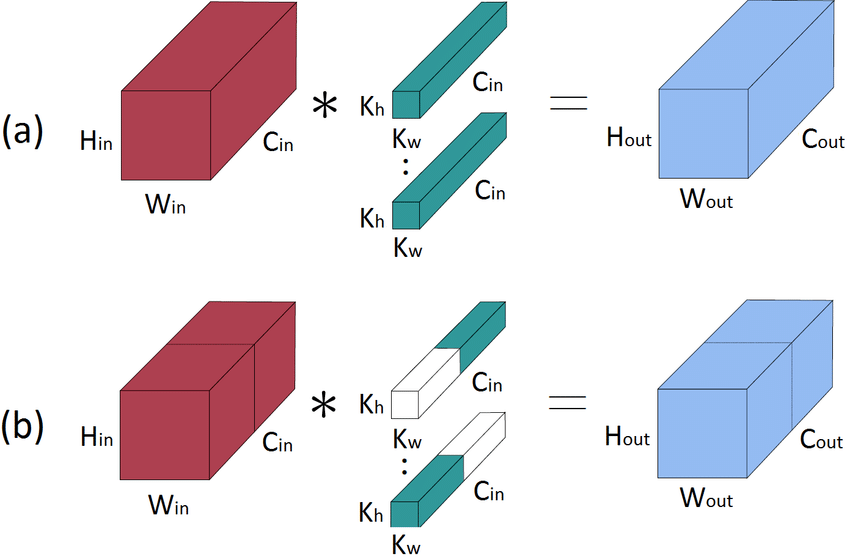

Standard vs. grouped convolutions: (a) In a standard convolution S, each filter is convolved with all of the input's channels; (b) In a grouped convolution with two groups G(2), half of the filters are applied to each half of the input for a 2× reduction in parameters used. More generally, a grouped convolution with g groups uses g× fewer parameters.



• Input Channel(C_in) 을 g개의 group으로 분리한다.
• 각 group 을 독립적으로 Convolution 연산을 수행한다.



• 장점 : 병렬 처리에 유리, 구현 간단, 기존 2D convolution에 비해 낮은 parameter 수
  • nn.Conv2d() 함수에서 groups(default : 1)의 값을 바꿔주면 된다.
  • parameter : (C_in * Kernel_szie^2 * C_out) / g



• 단점 : 직접 group 개수를 설정해야 함. 많은 그룹으로 분할시 오히려 성능하락.



import torch.nn as nn

class ConvBNReLU(nn.Module):
    def __init__(self, C_in, C_out, kernel_size, stride, padding, g, affine=True):
        super(ConvBNReLU, self).__init__()

        self.op     = nn.Sequential(
            nn.Conv2d(C_in, C_out, kernel_size, stride=stride, padding=padding, bias=False, groups=g),
            nn.BatchNorm2d(C_out, affine=affine),
            nn.ReLU(inplace=False)
        )

    def forward(self, x):
        return self.op(x)

---

2021.08.12 - [AI/ML & DL] - [ CNN ] 3. Pointwise Convolution - PyTorch Code

[ CNN ] 3. Pointwise Convolution - PyTorch Code





---
